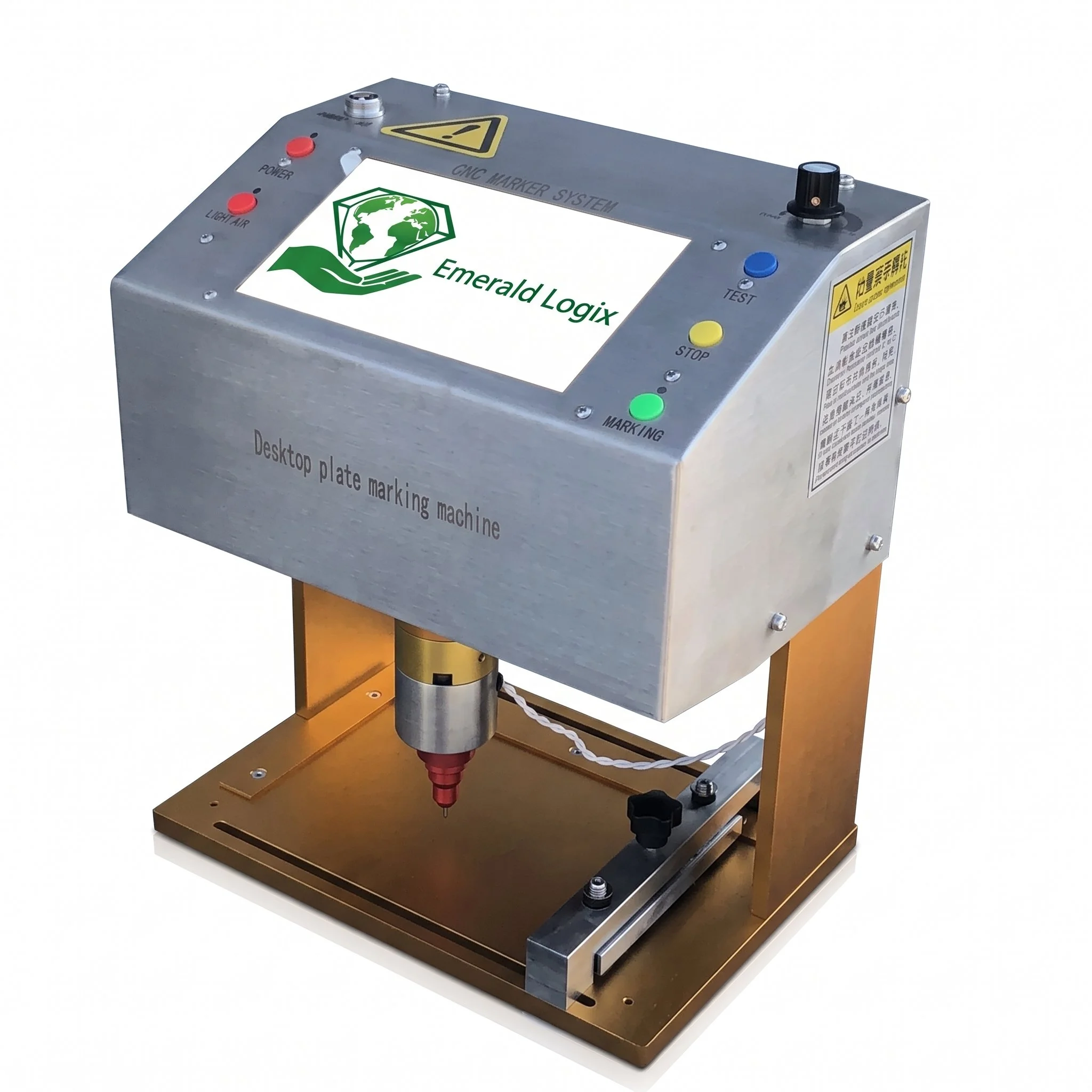

Desktop electric dot peen marking machine for permanent marks on flat plates, metal tags, nameplates, and small parts. The integrated touch screen and software control the marking pin over a fixed bench station.

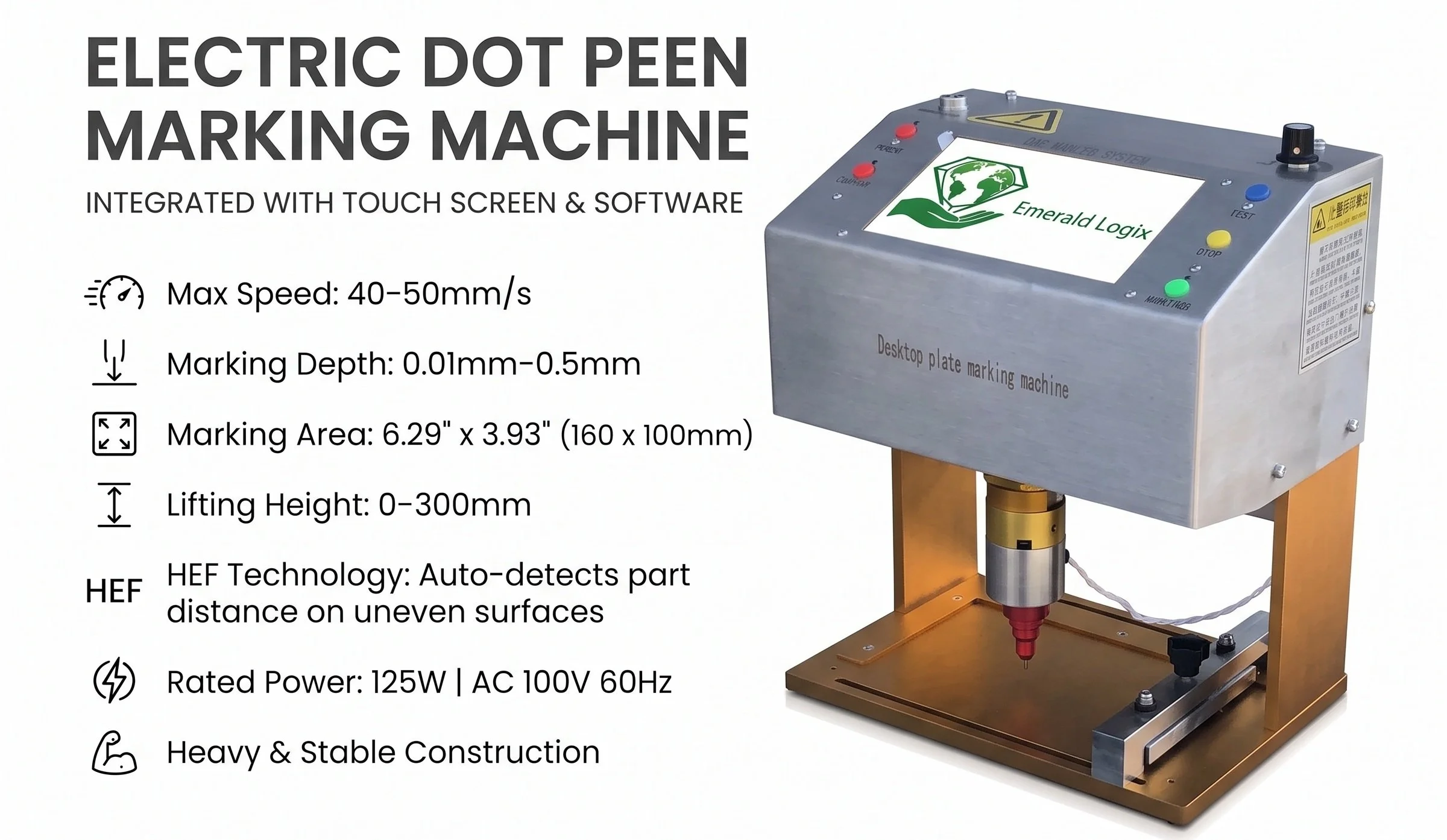

Key Features:
Electric dot peen marking head with a pointed pin
Integrated touch screen and marking software
Marking area 160 mm x 100 mm (6.29 in x 3.93 in)
Maximum marking speed 40–50 mm/s
Marking depth 0.01 mm–0.5 mm, depending on material
Lifting height 0–300 mm
HEF function detects part distance on uneven surfaces
Rated power 125 W
Power supply AC 100 V, 60 Hz
Brushed metal housing on a gold-colour metal base and uprights

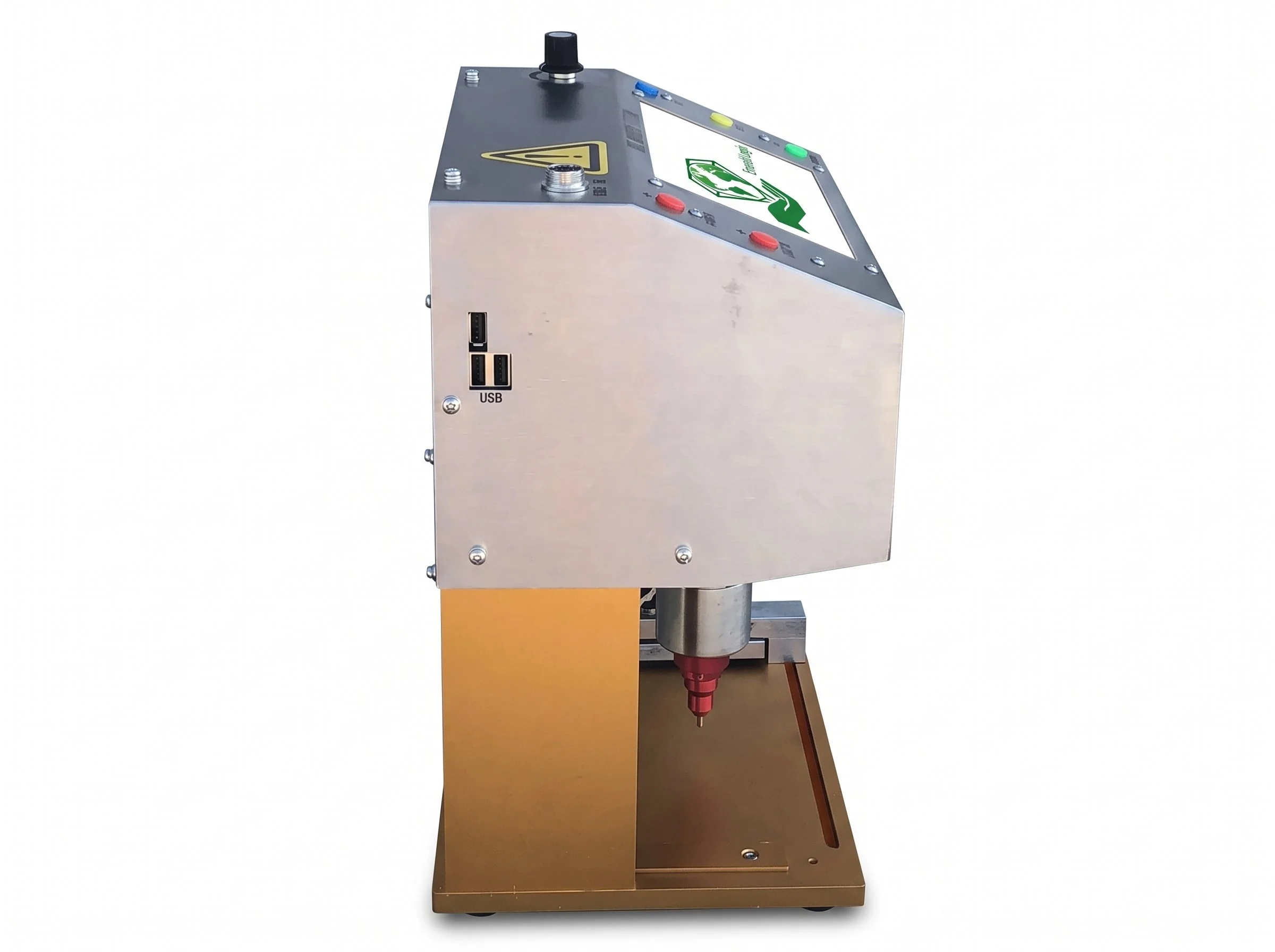

Side USB ports for data loading
Front controls marked POWER, LIGHT/AIR, TEST, STOP, and MARKING

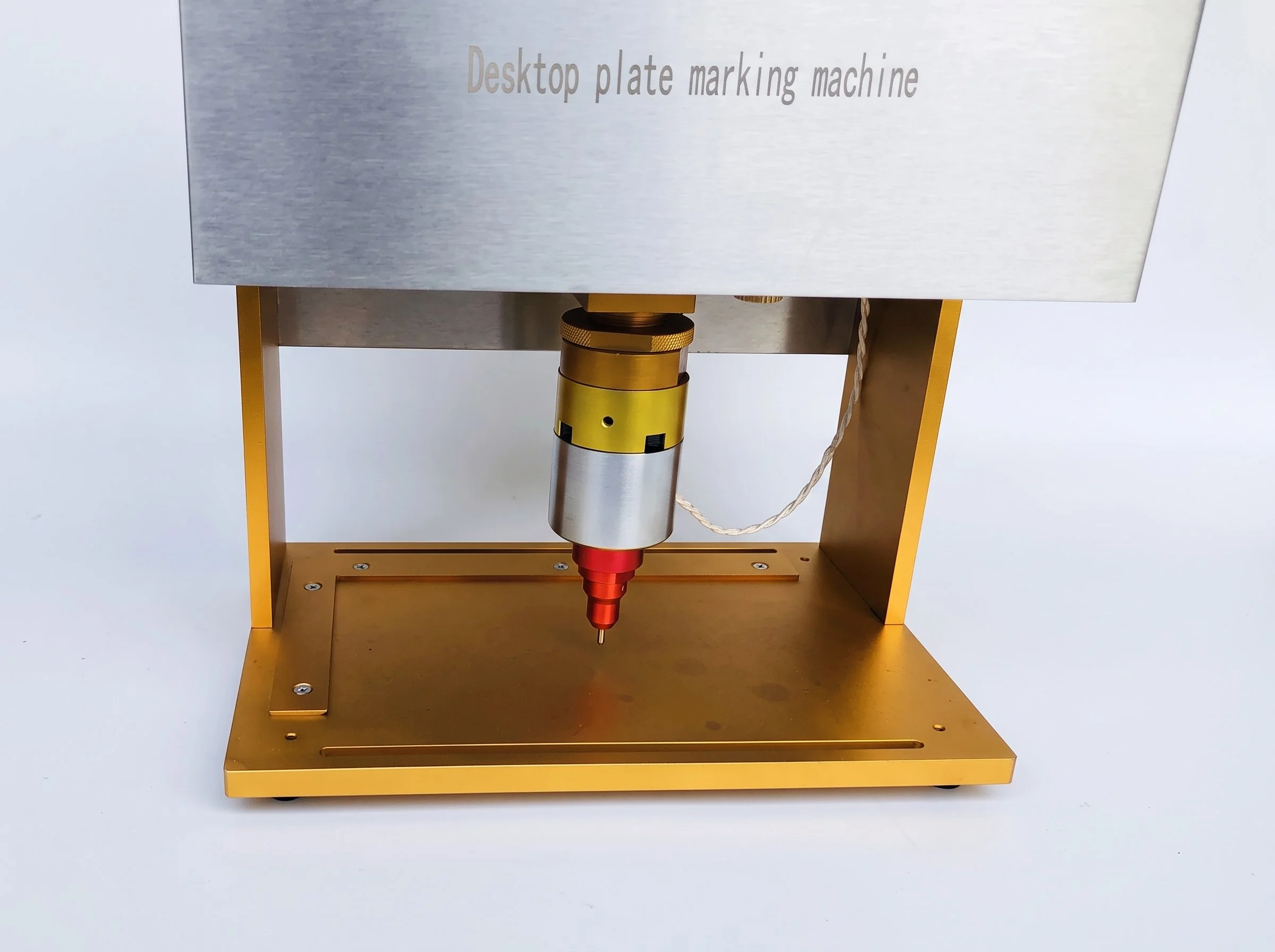

Linear rail and hand knob on the work base
Suitable materials: stainless steel, aluminum, mild steel, brass, copper, and hard plastics

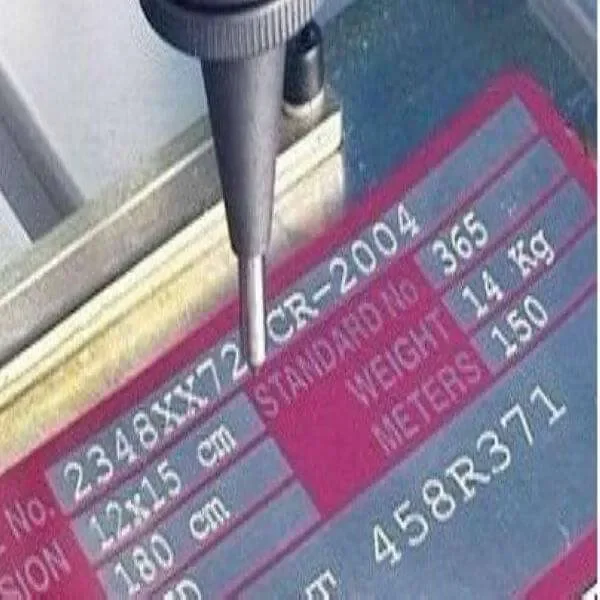

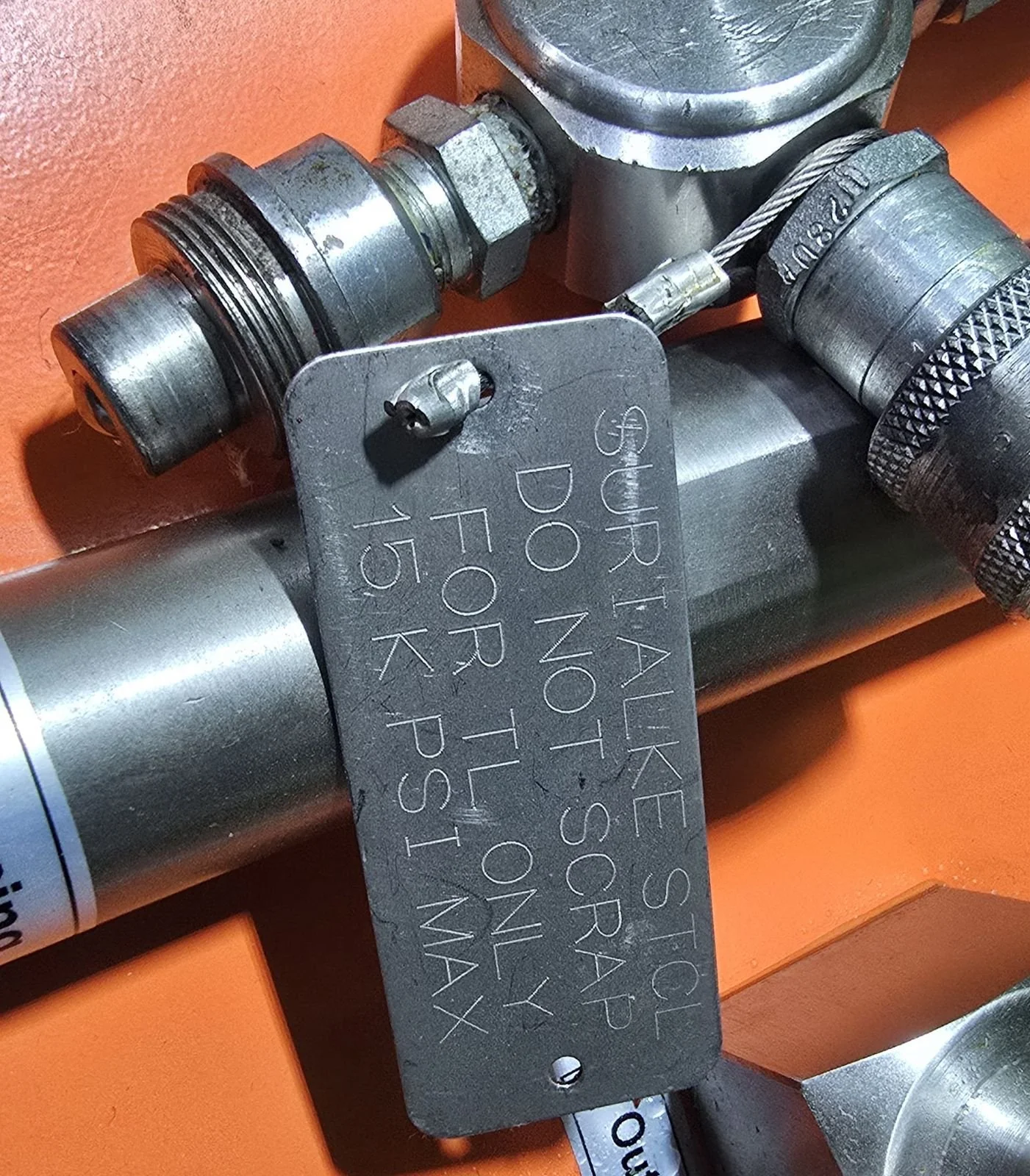

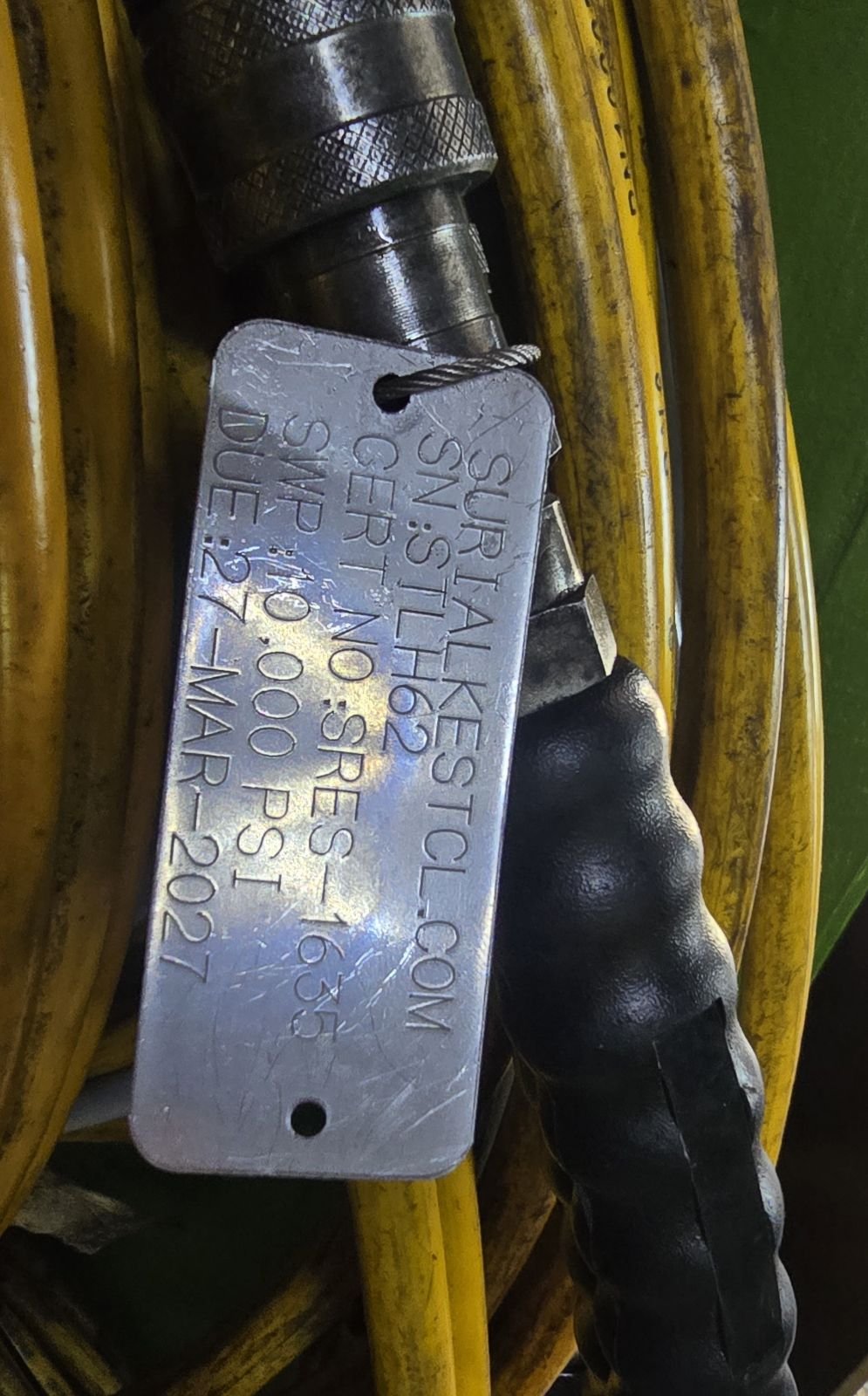

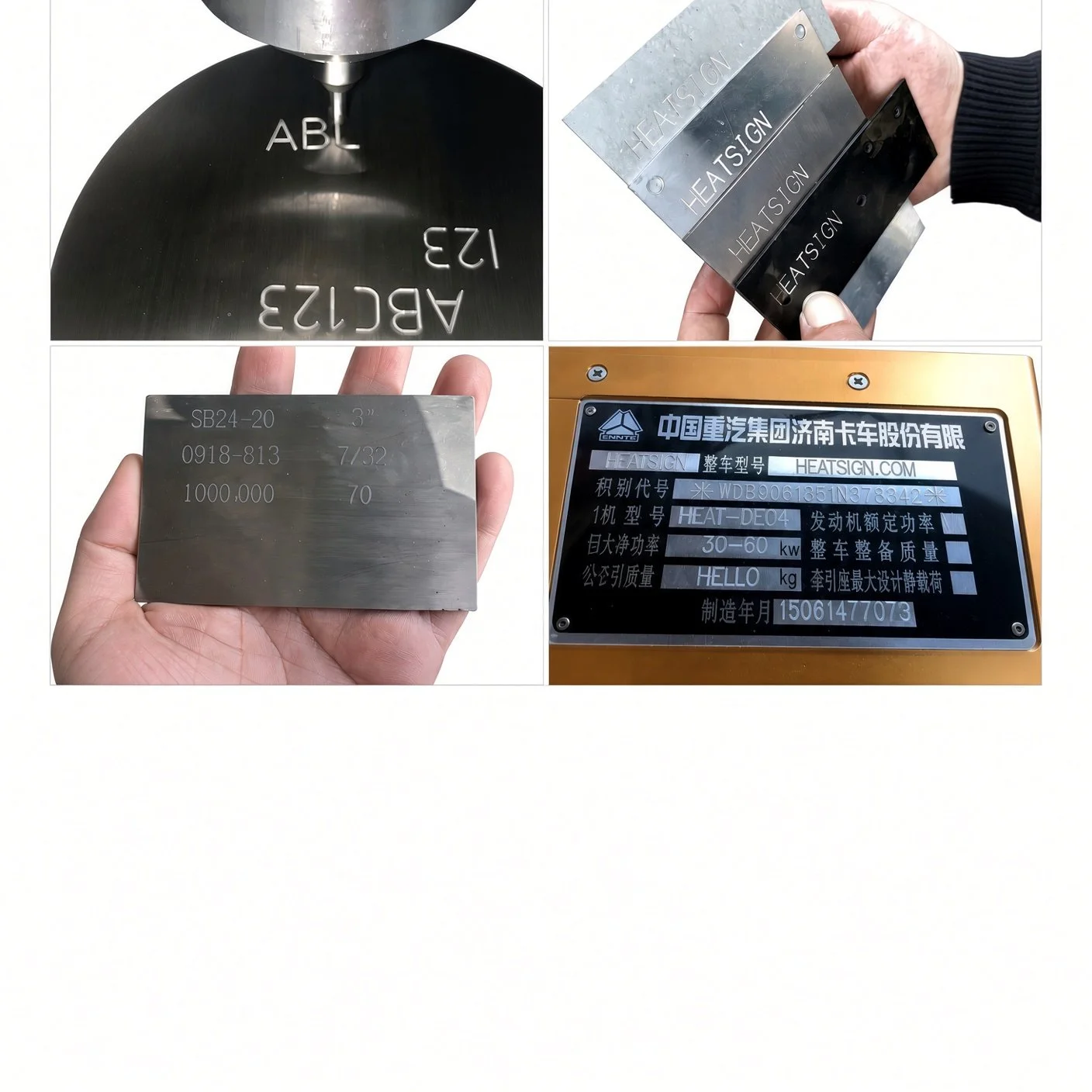

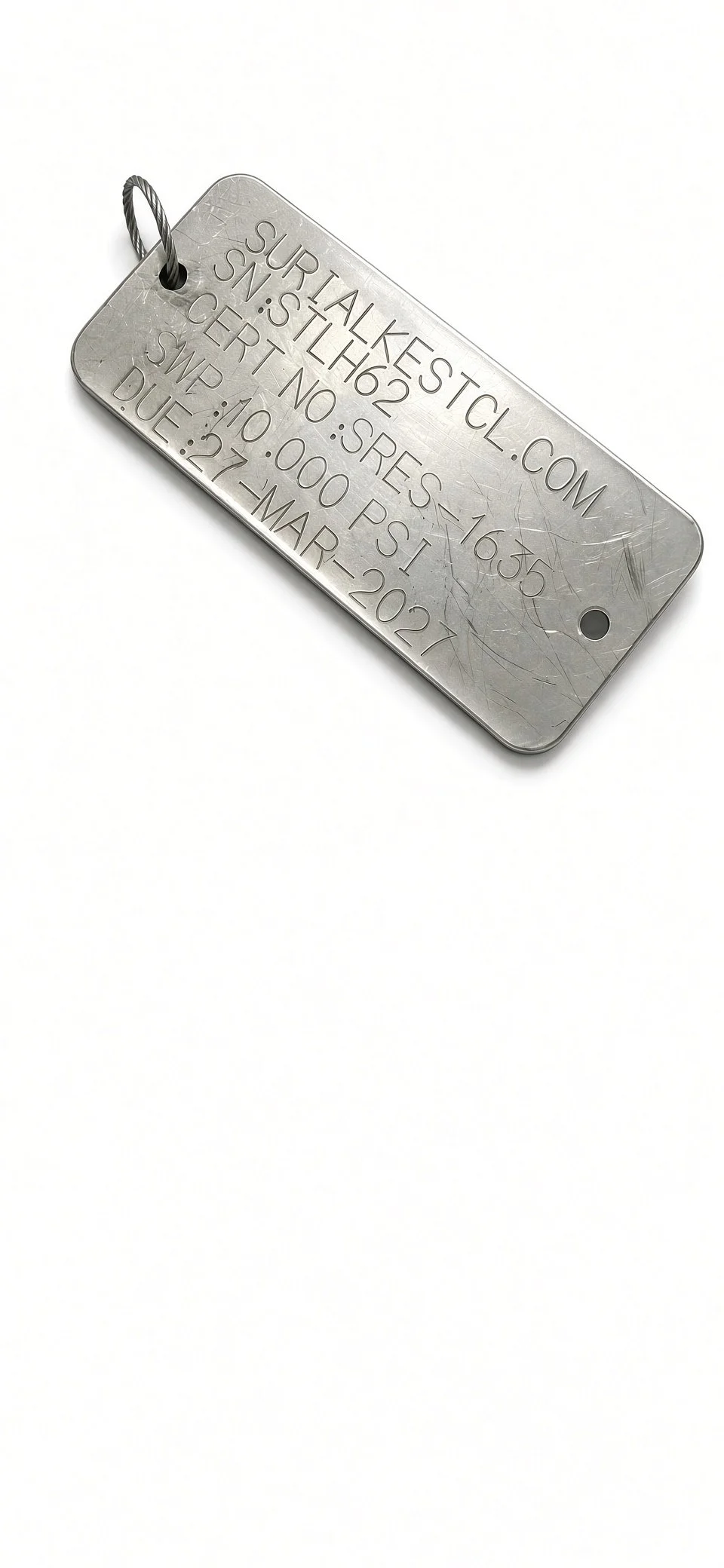

Customization and Imprint: The machine marks by electric dot peen impact. It is used for serial numbers, identification text, and dense character marks on metal tags, plates, and curved or rounded surfaces. Software content and marking layout are set on the integrated touch screen. Panel artwork and packaging options can be confirmed with the quote.
Order Quantity: Minimum order quantity: 1 unit
Suitable For: Workshops, fabrication shops, metal tag and nameplate production, asset identification, tool marking, quality tracking, and industrial part identification. It also suits print shops and corporate buyers that mark metal keepsakes, awards, and identification plates.
Request a quote based on quantity, software requirements, power supply, delivery location, and required specifications. International shipping is available, and delivery options depend on destination.
